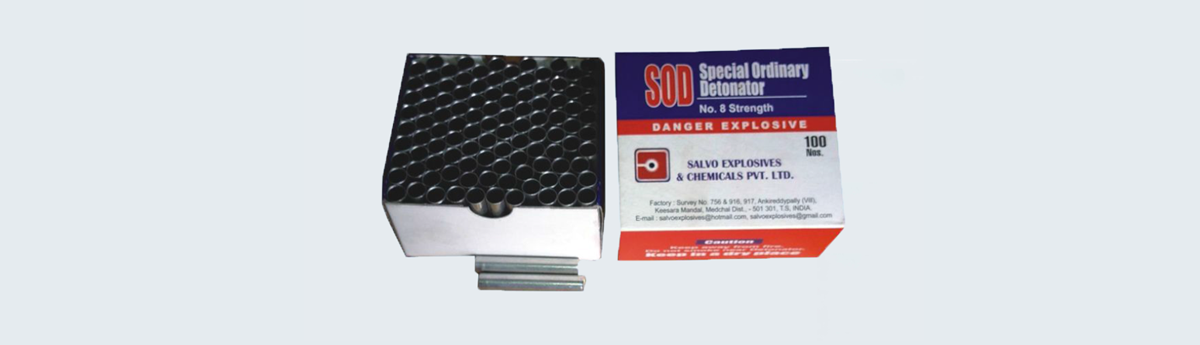

SSOD (Plain Detonator)
Salvo Special Ordinary Detonator is used with safety fuse. These detonators are no.8 strength and are used for blasting in quarries opencast mines, surface excavations, well sinking road constructions, civil works etc.
Salvo Special Ordinary Detonators are non-electric in nature. These are initiated by a strand of safety fuse that is inserted into the cap and crimped with a crimping tool to prevent the fuse from slipping out of the cap and to prevent water or other foreign material entering the cap. The safety fuse should be cut squarely so that it comes into contact with igniting charge of the cap.
For Salvo Special Ordinary Detonator best results store under moderate temperature and dry conditions in a well-ventilated approved explosives magazine.
| Product | Salvo Special Ordinary Det |
| Strength | No.8 |
| MOC | Aluminium |
| Shell length | 42mm |
| Shell Outer diameter | 7.2mm |
| Quantity in case | 10000 nos |
Salvo Special Ordinary Detonator are supplied in wooden boxes. The detonators are first packed in small cartons containing 100 nos. All 100nos cartons are placed in anti-static poly liner are placed in wooden box in which cushion pads have been provided on all sides.
As per IMDG(International Maritine Dangerous Goods) Classifications
Class: 1, Division: 1.1, Group: B, Un No.: 0029, Page No.: 1259, Storage Category: II TYPE 'C'
SAED (Electric Instantaneous Detonator)
Salvo Aluminium Electric Detonator it provides instantaneous detonation of explosives or detonating cord in quarries, surface operations, open pit mines and construction projects. Excellent water proofness product.
For Salvo Aluminium Electric Detonator best results store under moderate temperature and dry conditions in a well ventilated approved explosives magazine.
| GI Wire | |||
|---|---|---|---|
| Wire length (Mtr) | Qty/Case (Nos) | Qty in Bundle | Noot in Bundles |
| 1.5 | 1500 | 25 | 60 |
| 1.8 | 1500 | 25 | 60 |
| 2.0 | 1000 | 25 | 40 |
| 3.0 | 1000 | 25 | 40 |
If stored in cool dry, well ventilated magazine and handled properly, the maximum shelf life of Salvo Aluminium Electric Detonator is 3 years from the date of manufacture.
| Name of Explosive | SALVO ALUMINIUM ELECTRIC DETONATOR |
| Shipping name | DETONATORS NON ELECTRIC |
| Class/Division | 1.1B |
| Product | SAED |
| Strength | No.8 |
| MOC of shell | Aluminium |
| Shell length | 42mm |
| ShellOuter diameter | 7.2mm |
| Quantity in case | 1500/1000nos |
| Wire length | As per customer req |
| Wire colour | White |
| Wire material | GI coating with PVC |
| Wire Resistance | 0.5-0.7 Ohms/Mtr |
| Series firing current | 1.2A/ 4ms |
| All firing impulse | 2.4MJ |
| No firing current | 0.18A for 5Mins |
| Min fire Current | 0.8A for 4ms |
| Fuse head resistance | 1.6-2.4 |
| Water resistance | Excellent |
| Impact test | 2.0kgs drop form 0.4 Mtrs |
| Drop test | From 5.0mtr |
| Jolt test | 60 Jolts per min form 150mm height for 30Min |
Explosives materials is dangerous and require special training, Methods used for safe disposal may vary from case and will depend upon conditions under which the operations take place. For further information please contact Salvo reprehensive.
As per IMDG(International Maritine Dangerous Goods) Classifications
Class: 1, Division: 1.1, Group: B, Un No.: 0030, Page No.: 1257, Storage Category: II TYPE 'C'

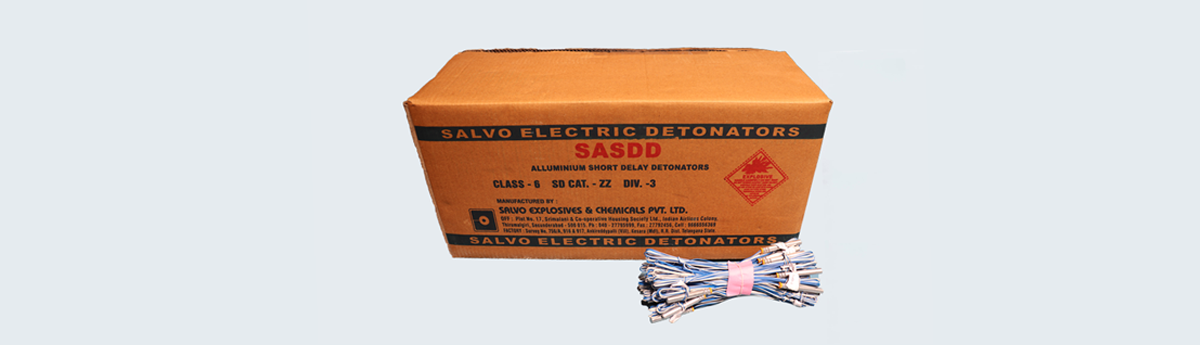

SASDD (Electric Short Delay Detonator)
Salvo Aluminium Short Delay Detonator it provides short delay detonation, Short period detonators in 10 delay periods. These can use in surface or under-ground mines, at quarries or at construction projects.
For Salvo Aluminium Short Delay Detonator best results store under moderate temperature and dry conditions in a well-ventilated approved explosives magazine.
| GI Wire Coated with PVC (Multi colour) | |||
|---|---|---|---|
| Wire length (Mtr) | Qty/Case (Nos) | Qty in Bundle | Noot in Bundle |
| 3.0 | 1000 | 25 | 40 |
| 5.0 | 1000 | 25 | 40 |
If stored in cool dry, well ventilated magazine and handled properly, the maximum shelf life of Salvo Aluminium Short Delay Detonator is 2 years from the date of manufacture.
| Name of Explosive | SALVO ALUMINIUM SHORT DELAY DETONATORS |
| Shipping name | DELAY DETONATORS |
| Class/Division | 1.1B |
| Product | SASDD |
| Strength | No.8 |
| MOC of shell | Aluminium |
| Shell length | 58-70mm |
| ShellOuter diameter | 7.5mm |
| Delay timing(ms) | 25-1000ms |
| Wire length | As per customer req |
| Wire colour | White & dark blue |
| Wire material | GI coating with PVC |
| Wire Resistance | 0.5-0.7 Ohms/Mtr |
| Series firing current | 1.2A, 4ms |
| All firing impulse | 2.4MJ |
| No firing current | 0.18A for 5Mins |
| Min fire Current | 0.8A for 4ms |
| Fuse head resistance | 1.6-2.4 |
| Water resistance | Excellent |
| Impact test | 2.0kgs drop form 0.4Mtrs |
| Drop test | From 5.0mtr |
| Jolt test | 60 Jolts per min form 150mm height for 30Min |
Explosives materials is dangerous and require special training, Methods used for safe disposal may vary from case and will depend upon conditions under which the operations take place. For further information please contact Salvo reprehensive.
As per IMDG(International Maritine Dangerous Goods) Classifications
Class: 1, Division: 1.1, Group: B, Un No.: 0030, Page No.: 1257, Storage Category: II TYPE 'C'

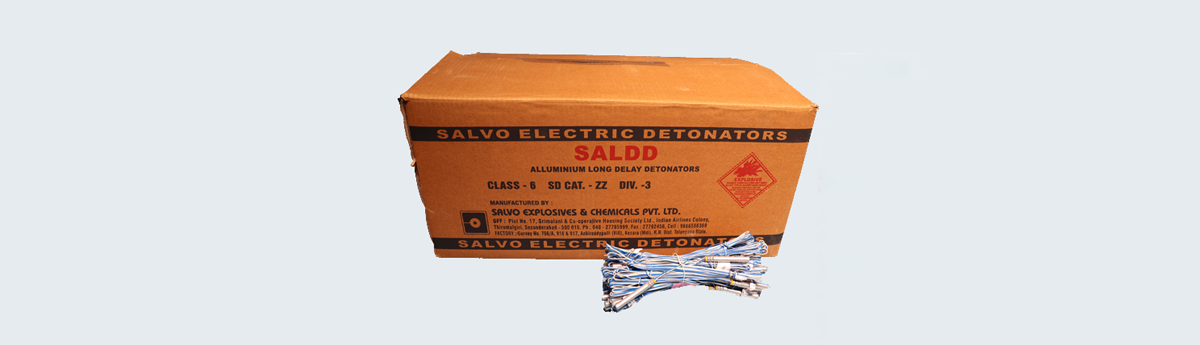

SALDD (Electric Long Delay Detonator)
Salvo Aluminium Long Delay Detonator it provides long delay period timings, long period detonators in 10 delay periods. These can use in surface or under-ground mines, at quarries or at construction projects.
For Salvo Aluminium Long Delay Detonator best results store under moderate temperature and dry conditions in a well-ventilated approved explosives magazine.
| GI Wire Coated with PVC (Multi colour) | |||
|---|---|---|---|
| Wire length (Mtr) | Qty/Case (Nos) | Qty in Bundle | Noot in Bundle |
| 3.0 | 1000 | 25 | 40 |
| 5.0 | 1000 | 25 | 40 |
If stored in cool dry, well ventilated magazine and handled properly, the maximum shelf life of Salvo Aluminium Long Delay Detonator is 2 years from the date of manufacture.
| Name of Explosive | SALVO ALUMINIUM LONG DELAY DETONATORS |
| Shipping name | DELAY DETONATORS |
| Class/Division | 1.1B |
| Product | SASDD |
| Strength | No.8 |
| MOC of shell | Aluminium |
| Shell length | 58-70mm |
| ShellOuter diameter | 7.5mm |
| Delay timing(ms) | 500-5000ms |
| Wire length | As per customer req |
| Wire colour | White & Dark blue |
| Wire material | GI coating with PVC |
| Wire Resistance | 0.5-0.7 Ohms/Mtr |
| Series firing current | 1.2A/4ms |
| All firing impulse | 2.4MJ |
| No firing current | 0.18A for 5Mins |
| Min fire Current | 0.8A for 4ms |
| Fuse head resistance | 1.6-2.4 |
| Water resistance | Excellent |
| Impact test | 2.0kgs drop form 0.4 Mtrs |
| Drop test | From 5.0mtr |
| Jolt test | 60 Jolts per min for 30Min form 150mm height |
Explosives materials is dangerous and require special training, Methods used for safe disposal may vary from case and will depend upon conditions under which the operations take place. For further information please contact Salvo reprehensive.
As per IMDG(International Maritine Dangerous Goods) Classifications
Class: 1, Division: 1.1, Group: B, Un No.: 0030, Page No.: 1257, Storage Category: II TYPE 'C'

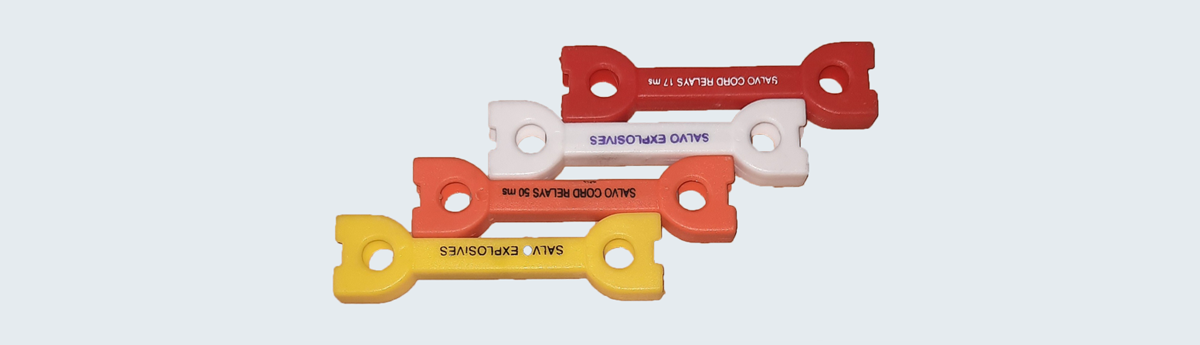

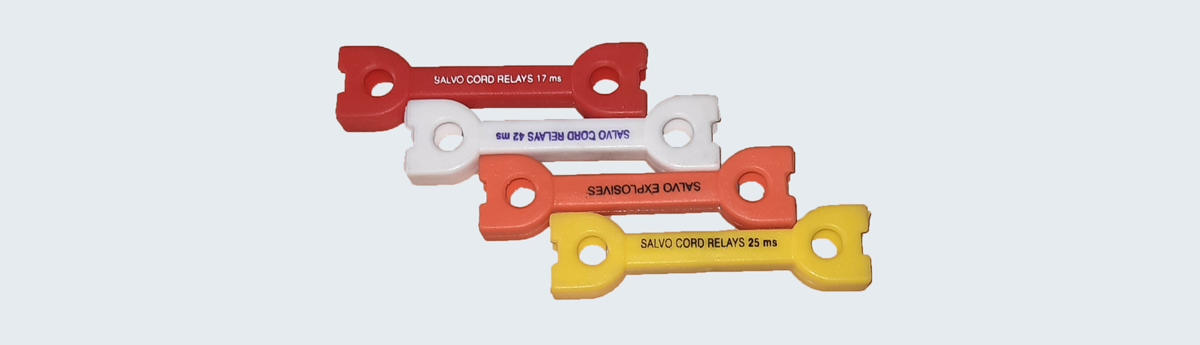

Salvo Cord Relay
Salvo Cord Relay consist of 2nos of millisecond delay detonators of same delay interval crimped in specially designed plastic housing which makes the product bi-directional. The plastic housing has a provision for hooking up detonating cord at either end. The delay interval is printed on the plastic housing. Salvo Cord relays are used in conjunction with detonating cord trunk lines in opencast, metal and coal mines, quarrying, civil construction and in underground metal mines. They provide an accurate delay between blast holes in a row or between the rows.
For Salvo Cord Relays best results store under moderate temperature and dry conditions in a well-ventilated approved explosives magazine Shel life of Salvo cord relays is 1 Year from the date of manufacturing.
| Product | SALVO CORD RELAYS |
| MOC of shell | Aluminium |
| Delay timing(ms) | 17, 25, 42, 50, 67 & 210 ms |
| MOC of mould | Plastic Block |
| Identification | Danger Explosives SALVO |
50nos Salvo cord Relays are packed in carton boxes. 20 such cartons are packed inside a wooden case having anti-static polythene lining. Total relays per case are 1000 numbers.
Salvo Det (Nonel)
Salvo Det (Nonel) it provides long delay period timings, long period detonators in 10 delay periods. These can use in surface or under-ground mines, at quarries or at construction projects other products are STLD 17, 25, 42, 65ns DTH 250, 450ms, Double dets 25/250 25/500ms.
For Salvo Det (Nonel) best results store under moderate temperature and dry conditions in a well-ventilated approved explosives magazine.
Salvo Det (Nonel) products are wound in regular coils and packed in poly bags. These are packed in fibre board boxes.
| Length (In mtrs) | Nos in Poly Bag | Qty in box |
|---|---|---|
| 3.0-5.0 | 10 | 300 |
| 6.0-10.0 | 10 | 250 |
| 11.0-14.0 | 10 | 200 |
| 15.0-19.0 | 10 | 150 |
| 20.0 Above | 10 | 100 |
If stored in cool dry, well ventilated magazine and handled properly, the maximum shelf life of Salvo Det (Nonel) is 2 years from the date of manufacture.
| Name of Explosive | SALVO SPECIAL ORDINARYDETONATOR |
| Shipping name | DETONATORS NON ELECTRIC |
| Class/Division | 1.1B |
| Product | SALVO DET(NONEL) |
| Strength | No.8 |
| MOC of shell | Aluminium |
| Shell length | 62-70mm |
| ShellOuter diameter | 7.5mm |
| Delay timing(ms) | ms |
| Shock tube length | As per customer req |
| VOD(mtrs/sec) | 2000±200 |
| Tensile strength | 30kg(min) |
| Identification | Delay timings, length stickers tagged with each shock tube |
| Water resistance | Excellent |
| Impact test | 2.0kgs drop form 0.4Mtrs |
| Drop test | From 5.0mtr |
| Jolt test | 60 Jolts per min form 150mm height for 30Min |
Explosives materials is dangerous and require special training, Methods used for safe disposal may vary from case and will depend upon conditions under which the operations take place. For further information please contact Salvo reprehensive.
As per IMDG(International Maritine Dangerous Goods) Classifications
Class: 1, Division: 1.1, Group: B, Un No.: 0030, Page No.: 1257, Storage Category: II TYPE 'C'
